Alweld Boats

Bay Series

The Bay Series is built with higher sides to offer safety in bigger water. It is built to be stable yet shallow running.

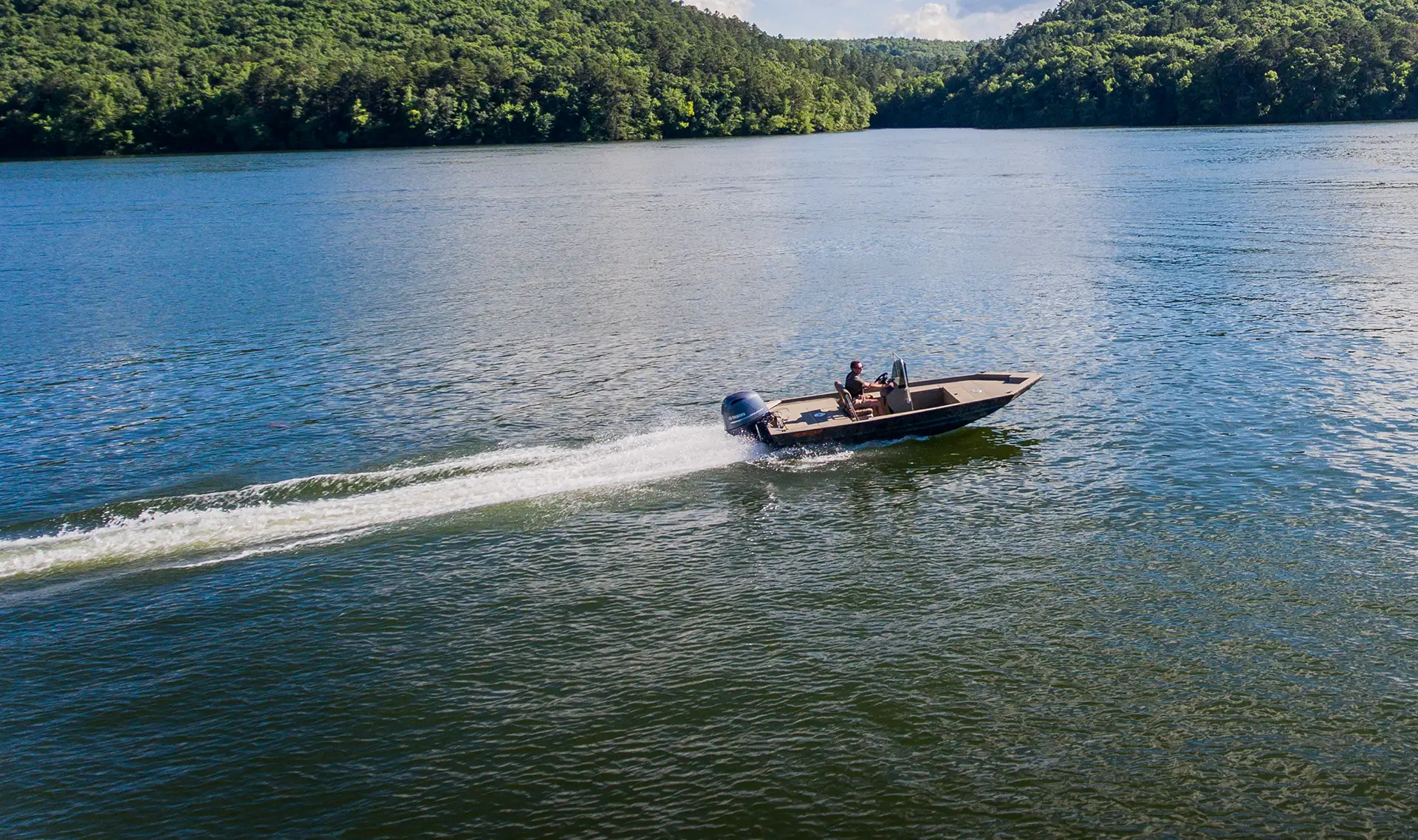

Bay Series boat on the water

Layout Packages

The Bay Series are available in two layout packages.

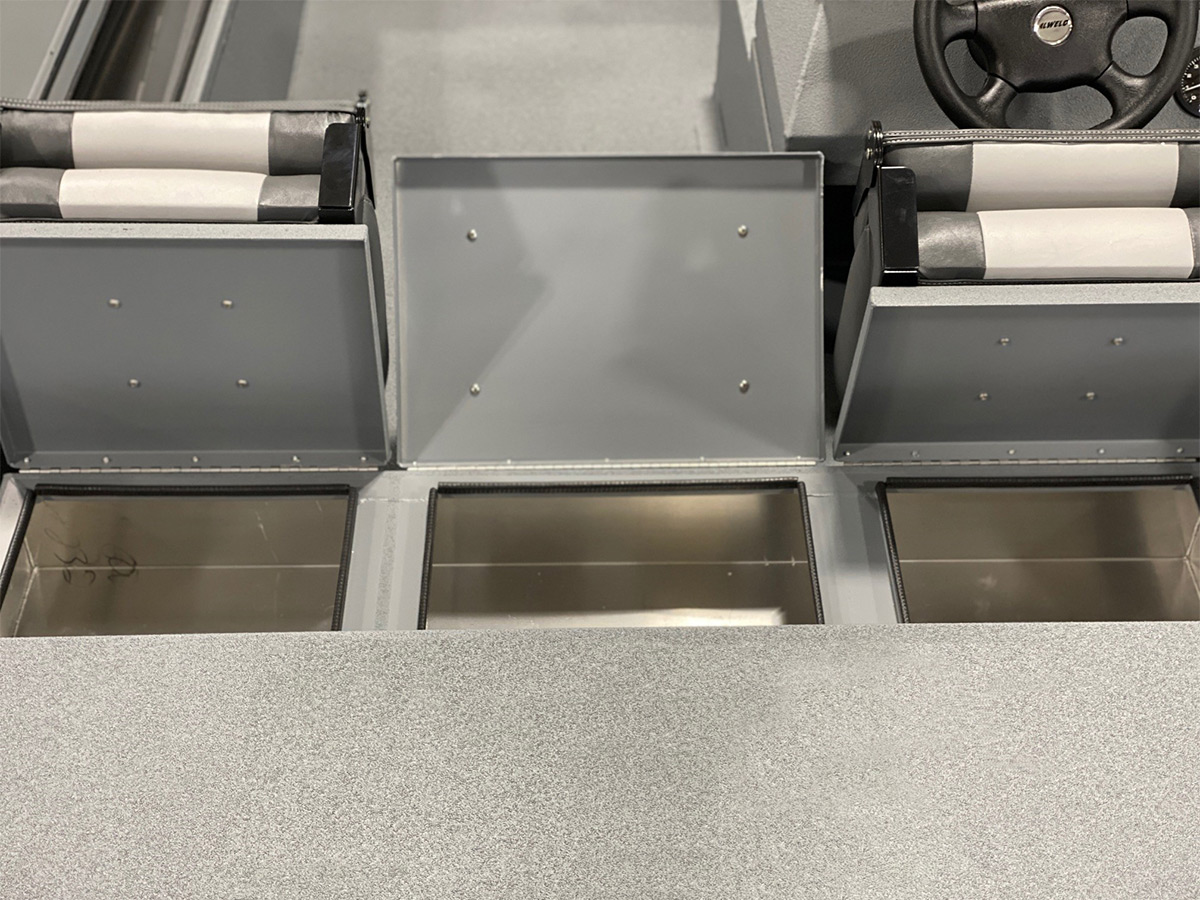

Bay Series Pro Seatbox

Pro Package

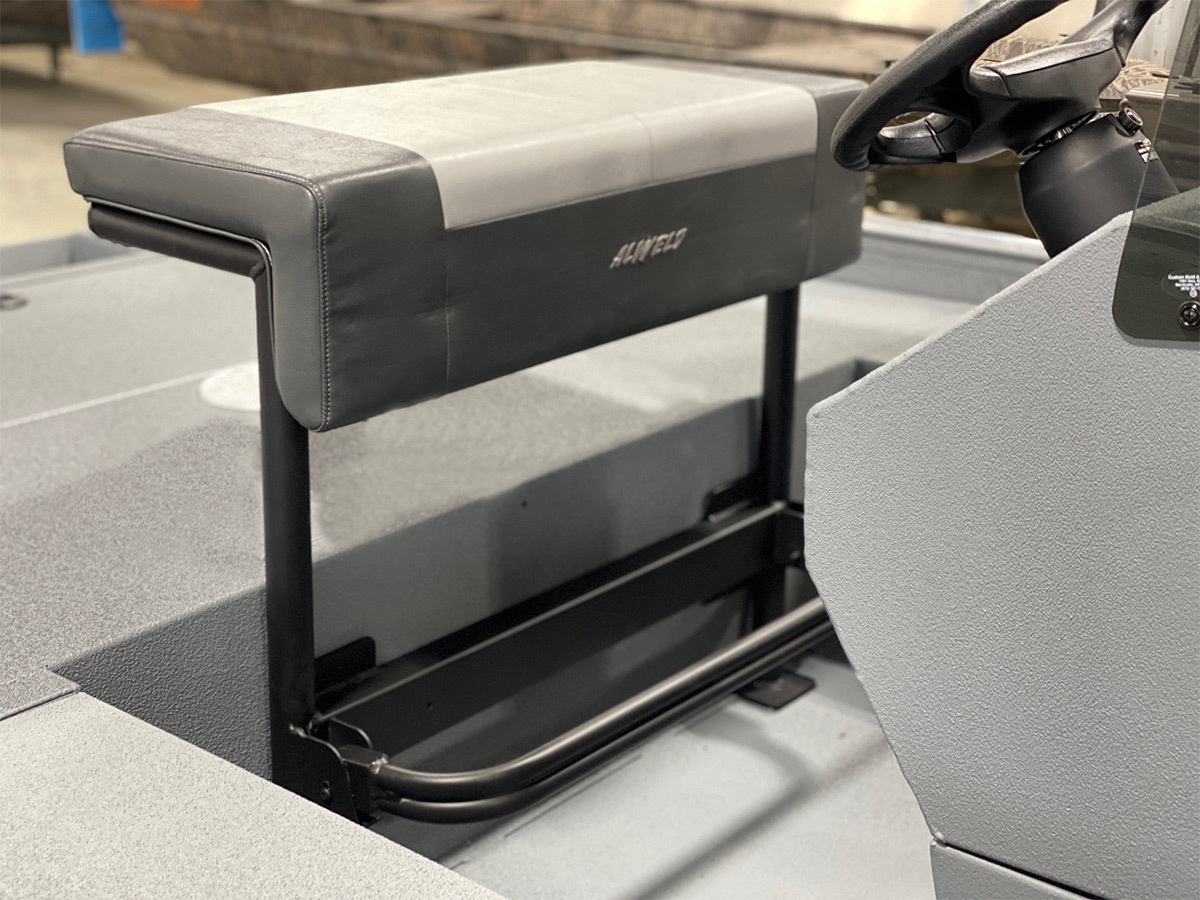

Bay Series CC Leaning Post

CC Package

Package Details

Pro Package CC Package

PRO Package Features

Bass Console
Hydraulic Steering/Switch Panel
Seat box with 3 Lids
2 Folding Seats on Seat Box
Seat Pad for Middle Seat
Splashpan
Trim Tabs
T-Slot Rail
Rear Deck
Front Deck with Storage
Floor and Sides
Trolling Motor Setup
Standard Paint
27 Gallon Fuel Tank
Bilge Pump
Gauge Kit (Tach and Fuel)
Lights
Hydraulic Steering/Switch Panel
4 Deck Cleats

PRO Package Hull

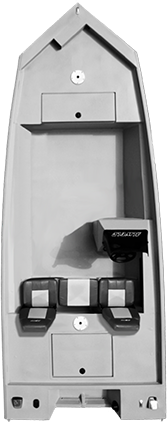

Bay Series PRO hull

CC Package Features

Center Console
Hydraulic Steering/Switch Panel
Windshield and Grabrail
Splashpan
Trim Tabs
T-Slot Rail
Rear Deck
Front Deck with Storage
Floor and Sides
Trolling Motor Setup
Standard Paint
27 Gallon Fuel Tank
Bilge Pump
Gauge Kit (Tach and Fuel)
Lights
Hydraulic Steering/Switch Panel
Leaning Post with Cushion
4 Deck Cleats

CC Package Hull

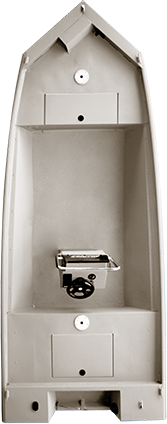

Bay Series CC hull

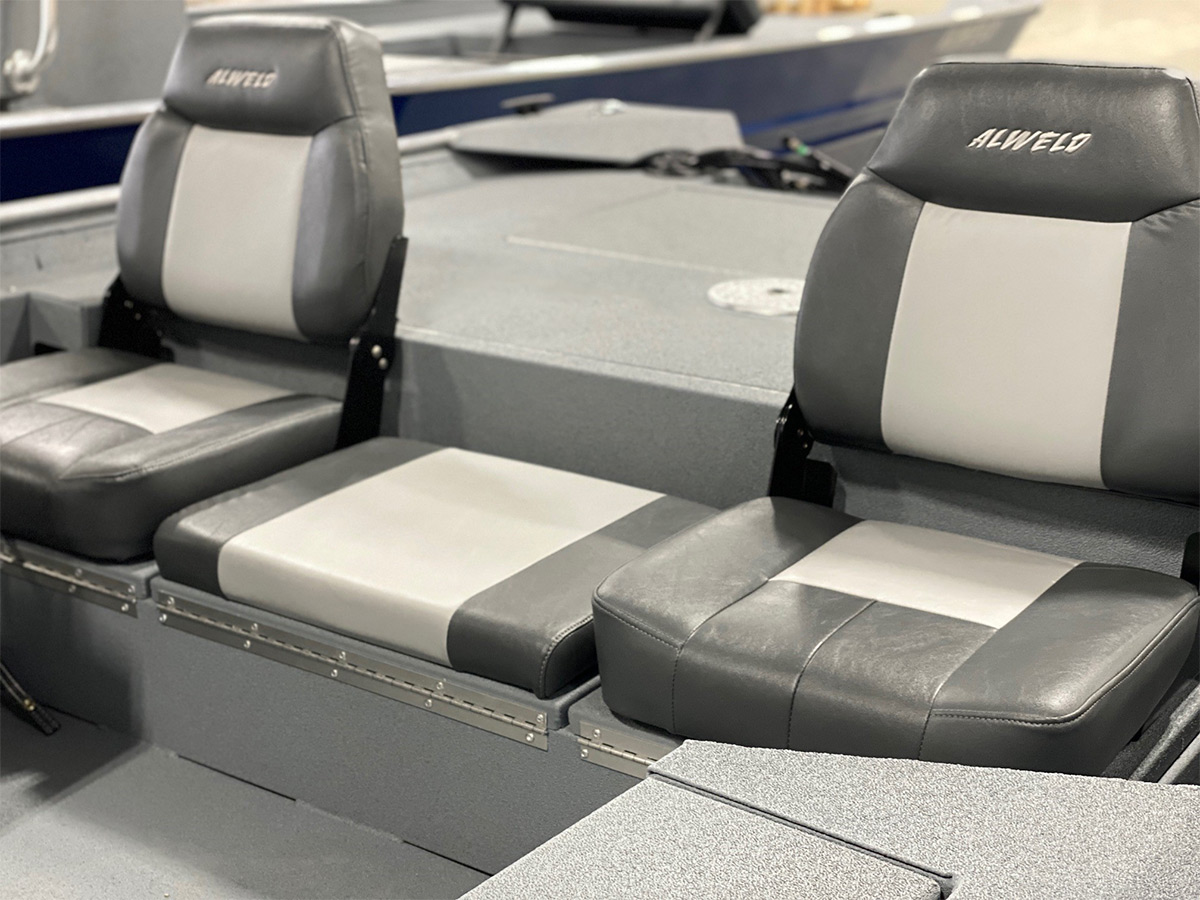

Bay Series PRO Seatbox Seats

Options Available

Long Transom
Extra Long Transom
Tunnel (Standard 5″, suitable for prop)
Tunnel (Performance 2 1/2″, suitable for jet or prop)
Fantail
Pontoons
CC Package
PRO Package
Rod Box
Storage in Front of Console
LW (Aer) in Front of Console
Transducer Bracket
Passenger Console/Windshield
Interior NonSkid
Interior Carpet
Yamaha Binnacle Controls
Yamaha Side Controls
Seat Pad
2 Fishing Seats
2 Clam Shell Seats

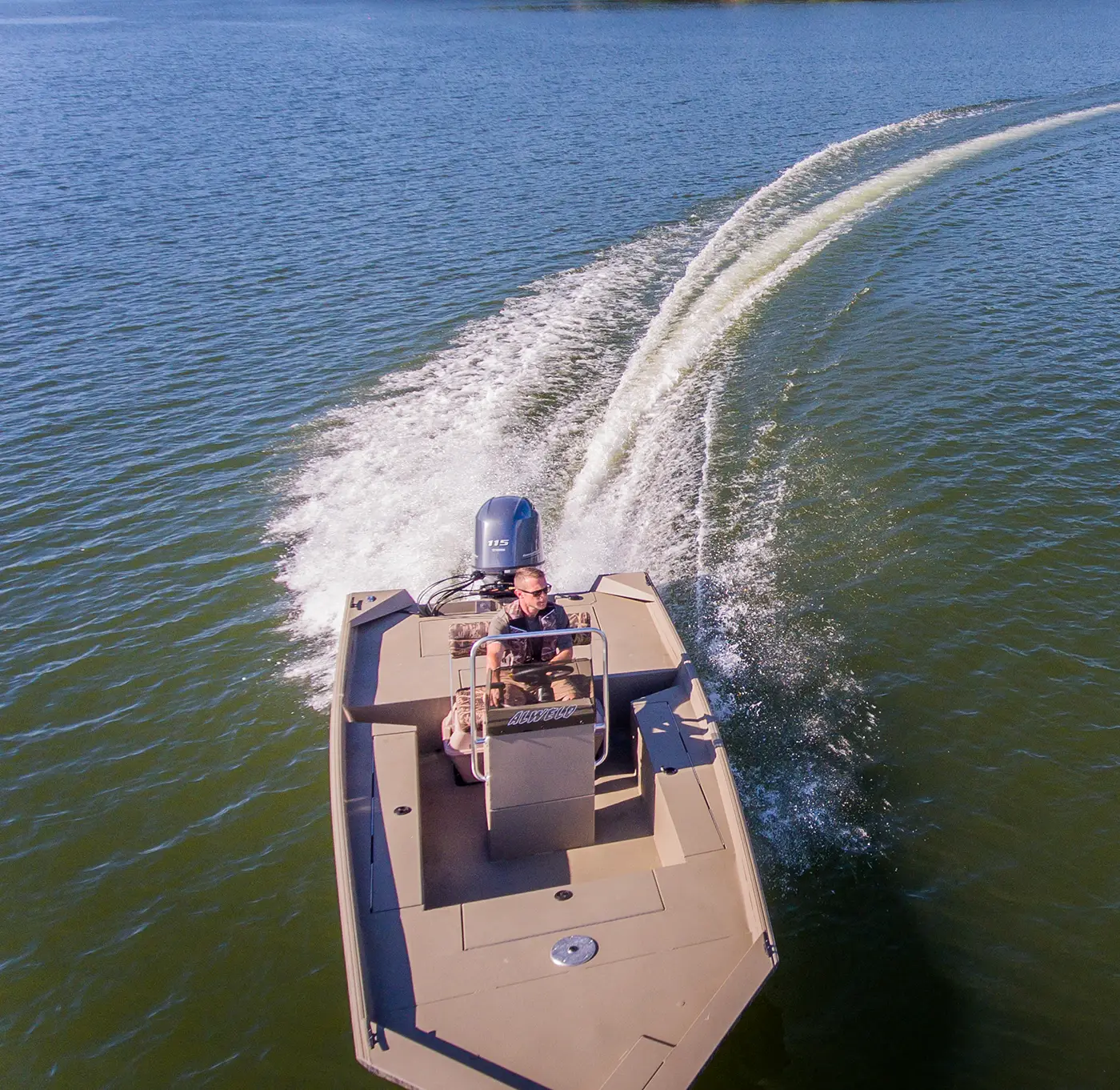

Bay Series boat on the water

Personalize Your Alweld

When it comes to finalizing an aesthetic, every choice counts. So we want to give you the opportunity to be the one making the choices. Pick your favorite colors to make your Alweld your own.

Interior Options

Interior non skid color choices can be any standard flat paint color.

Gray Carpet swatch
Non Skid swatch
Tan Carpet swatch

Standard Colors

Our standard colors are a flat finish and are standard on all boats. No paint is also available. Non Skid upgrade colors can be chosen from standard colors.

Brown color swatch
Gray color swatch
Khaki color swatch
OD Green color swatch

Upgrade Colors

Upgrade colors are metallic finish for exterior only. Interior color may be chosen from standard colors or carpet interior.

Battleship color swatch
Black color swatch
Blue color swatch
Camo color swatch
Green color swatch
Red color swatch
White color swatch

Sizes Available

Model Name
Hull Type
Bottom Width
Side Height
Beam
HP Rating
Persons
Max Weight Cap. (lbs)
Boat Weight (lbs)
Std. Transom
Bowseat
Gauge
Model Name 1860VVSC Bay
Hull Type Vee Bottom
Bottom Width 60"
Side Height 28"
Beam 89"
HP Rating 115
Persons 4/650
Max Weight Cap. (lbs) 1200
Boat Weight (lbs) 1040
Std. Transom L
Bowseat 57"
Gauge 0.100
Model Name 1960VVSC Bay
Hull Type Vee Bottom
Bottom Width 60"
Side Height 28"
Beam 89"
HP Rating 115
Persons 4/650
Max Weight Cap. (lbs) 1200
Boat Weight (lbs) 1100
Std. Transom L
Bowseat 57"
Gauge 0.100
Model Name 2060VVSC Bay
Hull Type Vee Bottom
Bottom Width 60"
Side Height 28"
Beam 89"
HP Rating 150
Persons 6/825
Max Weight Cap. (lbs) 1400
Boat Weight (lbs) 1160
Std. Transom L
Bowseat 57"
Gauge 0.100
Model Name 1870VVSC Bay
Hull Type Vee Bottom
Bottom Width 70"
Side Height 29"
Beam 96"
HP Rating 150
Persons 6/825
Max Weight Cap. (lbs) 1400
Boat Weight (lbs) 1380
Std. Transom L
Bowseat 65"
Gauge 0.100
Model Name 2070VVSC Bay
Hull Type Vee Bottom
Bottom Width 70"
Side Height 29"
Beam 96"
HP Rating 150
Persons 6/825
Max Weight Cap. (lbs) 1400
Boat Weight (lbs) 1240
Std. Transom L
Bowseat 65"
Gauge 0.100
Model Name 2270VVSC Bay
Hull Type Vee Bottom
Bottom Width 70"
Side Height 29"
Beam 96"
HP Rating 150
Persons 6/825
Max Weight Cap. (lbs) 1400
Boat Weight (lbs) 1405
Std. Transom L
Bowseat 65"
Gauge 0.100
Model Name 1860VVCC Bay
Hull Type Vee Bottom
Bottom Width 60"
Side Height 28"
Beam 89"
HP Rating 115
Persons 4/650
Max Weight Cap. (lbs) 1200
Boat Weight (lbs) 1020
Std. Transom L
Bowseat 57"
Gauge 0.100
Model Name 1960VVCC Bay
Hull Type Vee Bottom
Bottom Width 60"
Side Height 28"
Beam 89"
HP Rating 115
Persons 4/650
Max Weight Cap. (lbs) 1200
Boat Weight (lbs) 1060
Std. Transom L
Bowseat 57"
Gauge 0.100
Model Name 2060VVCC Bay
Hull Type Vee Bottom
Bottom Width 60"
Side Height 28"
Beam 89"
HP Rating 150
Persons 6/825
Max Weight Cap. (lbs) 1400
Boat Weight (lbs) 1140
Std. Transom L
Bowseat 57"
Gauge 0.100
Model Name 1870VVCC Bay
Hull Type Vee Bottom
Bottom Width 70"
Side Height 29"
Beam 96"
HP Rating 150
Persons 6/825
Max Weight Cap. (lbs) 1400
Boat Weight (lbs) 1360
Std. Transom L
Bowseat 65"
Gauge 0.100
Model Name 2070VVCC Bay
Hull Type Vee Bottom
Bottom Width 70"
Side Height 29"
Beam 96"
HP Rating 150
Persons 6/825
Max Weight Cap. (lbs) 1400
Boat Weight (lbs) 1220
Std. Transom L
Bowseat 65"
Gauge 0.100
Model Name 2270VVCC Bay
Hull Type Vee Bottom
Bottom Width 70"
Side Height 29"
Beam 96"
HP Rating 150
Persons 6/825
Max Weight Cap. (lbs) 1400
Boat Weight (lbs) 1385
Std. Transom L
Bowseat 65"
Gauge 0.100
Three Alweld boats cruising on the water

Find Your Alweld Dealer

Ready to purchase? Alweld boats are sold exclusively through our network of authorized dealers. Your dealer will assist with pricing, customization options, and ordering the perfect Alweld boat for your needs.

Find a Dealer
